Support 6U 3-slot 0.8/1.0 standard VPX board, compliant with VITA specification
15.6 high-resolution LCD screen 1920*1080P optional 4K
Optional -40 wide temperature LCD screen, optional electromagnetic shielding, optional sunlight visibility, optional touch
Standard industrial-grade chocolate keyboard, optional waterproof keyboard, optional GJB-151 standard
All-aluminum structure body, external interface can provide protective door design
Performance indicators
Material: T6061 optional magnesium-aluminum alloy

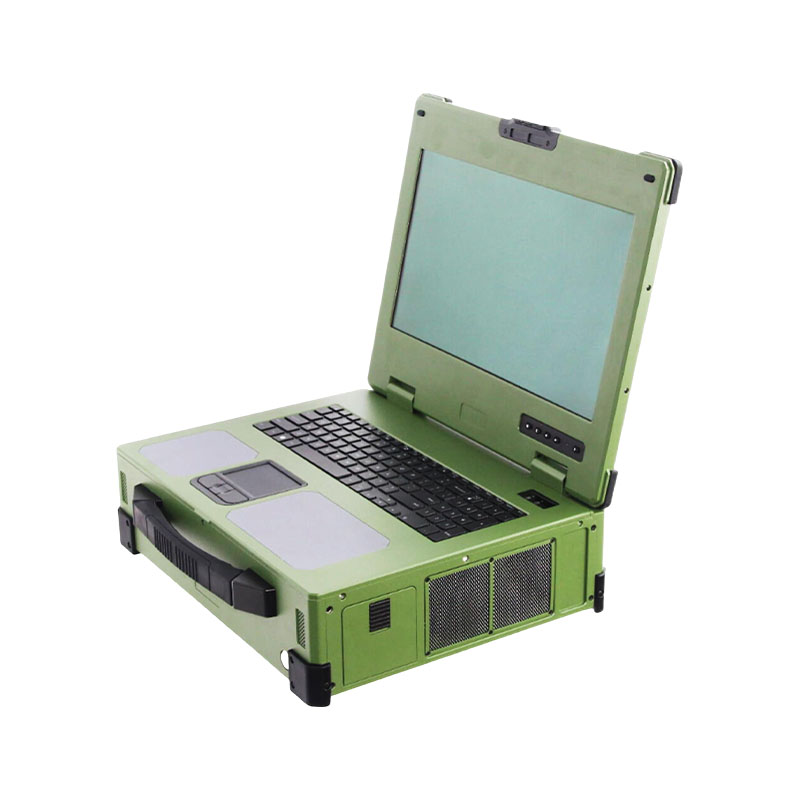

Display: 15.6 high-resolution LCD screen 1920*1080P / optional 4K / optional -40 wide temperature LCD screen / optional electromagnetic shielding / optional sunlight visibility / optional capacitive touch screen
Keyboard: standard industrial-grade chocolate keyboard / optional waterproof keyboard, optional to meet GJB-151 standard
Touch mouse: standard industrial touchpad with extended functions / optional to meet GJB-151 standard
Expansion interface: external interface can provide protective door design

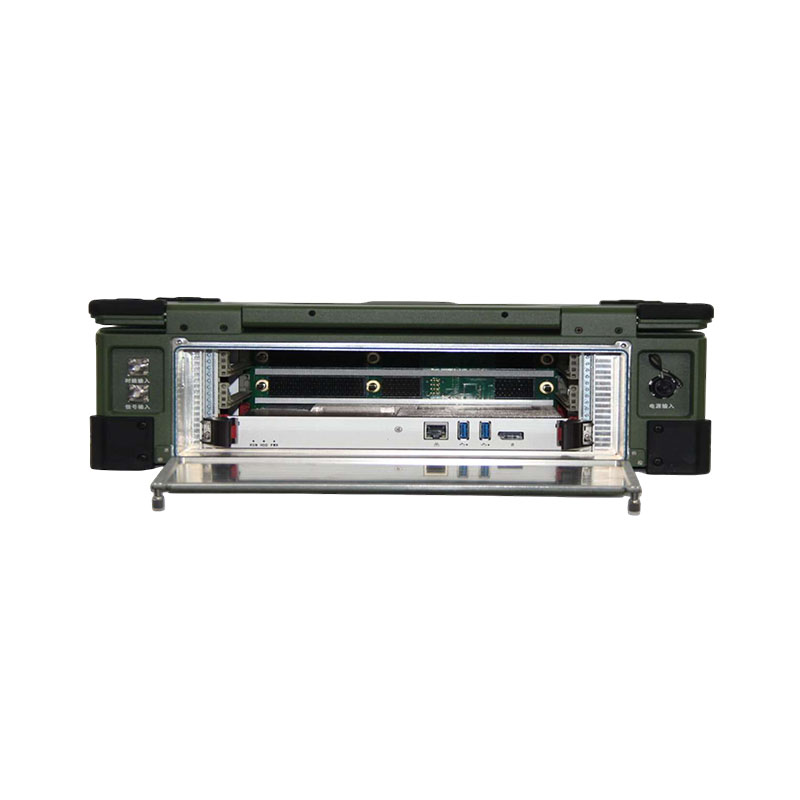

Backplane: standard 6U 3-slot VPX backplane, PCIE, SRIO and other expansion buses, non-standard backplane can be customized
Heat dissipation: symmetrical heat dissipation of left and right air ducts with a total of 4 cooling fans
Weight: 7KG, excluding controller
Mechanical size: 400W*320D*120H mm
Environmental parameters
Working temperature: 0-50℃, optional -20-60℃/optional -40-60℃
Relative humidity: 95%, no condensation
Storage temperature: -40-70℃
Reliability index: MTBF≥ 30000h, 25℃
Maintainability: MTTR≤ 60min
