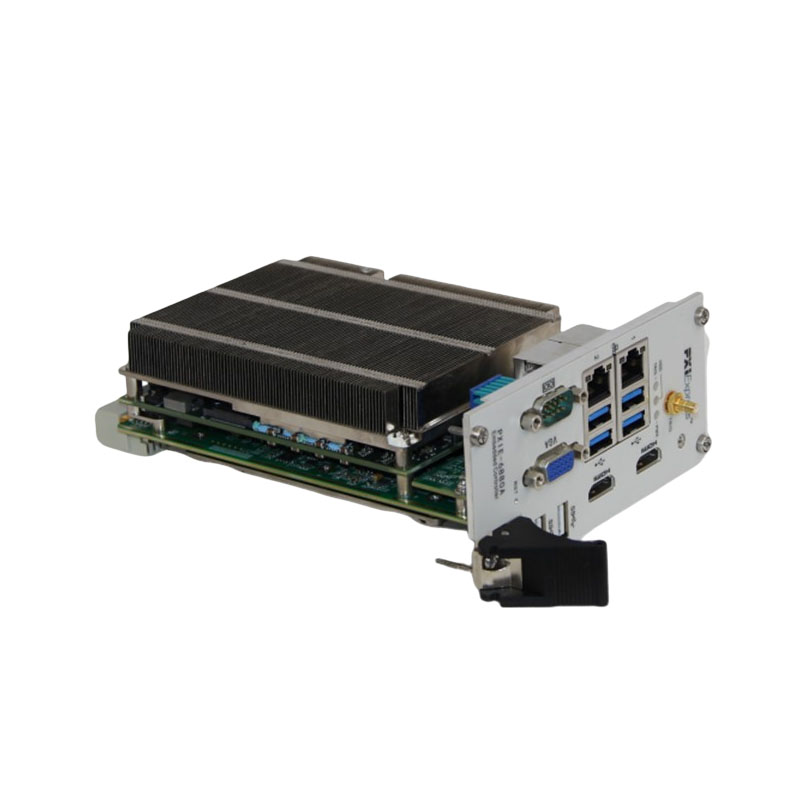

PXIE Main Control Card PXIE-6882
PXIE-6882
The PXIE-6882 controller is a 3U PXIE standard computer controller that integrates CPU, memory, storage devices and rich peripherals. It provides high reliability and cost-effective processor solutions for high-performance computing applications. It can meet computer applications in industries such as industrial control, military industry, communications, and consumer electronics.
The controller is a high-efficiency standard 3U PXIE single-board computer designed based on Intel's 6th generation processor and Intel® QM170 chipset. The controller provides SATA sockets, USB3.0, USB2.0 and other interfaces, and provides 2 10/100/1000M Ethernet interfaces. The board display controller can provide DP or HDMI display interfaces, and the display resolution can reach up to 1920x1200, the controller has the characteristics of strong overall performance, high stability, and rich interfaces, and is particularly suitable for computing and processing centers of various compatible industrial computers and military computers.
● Processor: Intel® Core i7-6820EQ 4 cores 2.8/3.5GHz
Intel® Core i7-6822EQ 4 cores 2.0/2.8GHz
Intel® Core i5-6442EQ 4 cores 1.9/2.7GHz
Intel® Core i5-6440EQ 4 cores 2.7/3.4GHz
Intel® Core i3-6100E 2 cores 2.7GHz
● Chipset: Intel® PCH QM170
● Memory: 16GB DDR4 memory (8 GB – 32 GB)
● Display: Integrated graphics card, supports up to 2560×1600
● Storage: Supports 1 onboard 2.5” hard drive installation slot, and reserves 1 M.2 (2280) interface.
● Front panel interface:
USB: 4 USB3.0 and 2 USB2.0 interfaces
Serial port: 1 RS232/RS422/RS485 (DB9)
Reset: 1 reset button
Ethernet port: 2 Gigabit Ethernet interfaces (RJ45)
Display interface: 2 HDMI, 1 VGA
● To backplane interface:
1 × 16 PCIE or 2 × 8 or 4 × 4 interfaces
4 groups of 100M clock
● Operating temperature range: -40℃~+60℃
● Operating humidity: 10%~90%, non-condensing.
● Storage temperature: -40℃~+85℃.
● Shock: 15G peak-peak, 11ms duration (non-working state).
● Vibration: 2Grm random vibration, 5-500Hz per axis (working state).
● Operating system:
• Windows 7 Pro 32-bit and 64-bit
• Red Hat® Enterprise Linux® 64-bit
