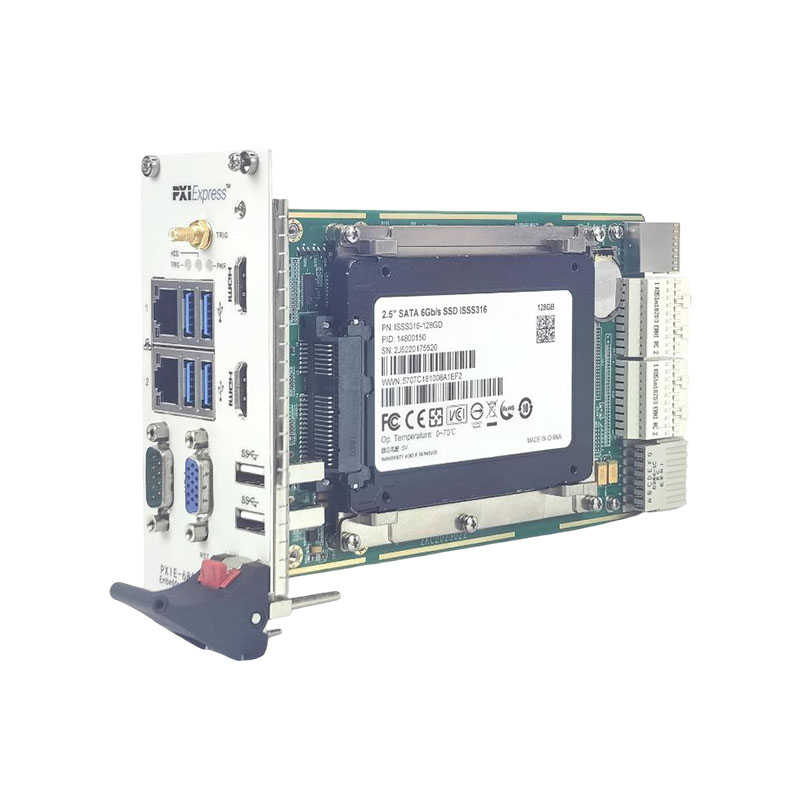

PXIE Main Control Card PXIE6882-9TH

PXIE6882-9TH
The PXIE-6882 controller is a 3U PXIE standard computer controller that integrates CPU, memory, storage devices and rich peripherals. It provides high reliability and cost-effective processor solutions for high-performance computing applications. It can meet computer applications in industries such as industrial control, military, communications, and consumer electronics.
The controller is a high-efficiency standard 3U PXIE single-board computer designed based on Intel's 9th generation processor and Intel® CM246 chipset. The controller provides SATA sockets, USB3.0, USB2.0 and other interfaces, and provides 2 10/100/1000M Ethernet interfaces. The board display controller can provide DP or HDMI display interfaces, and the display resolution can reach up to 1920x1200, the controller has the characteristics of strong overall performance, high stability, and rich interfaces, and is particularly suitable for computing and processing centers of various compatible industrial computers and military computers.

Consult

Features Technical Indicators Overall Dimension

● Processor: Intel® Xeon® E-2276ME, 2.8GHz, 4.5GHz, 6 cores, 12 threads

● Chipset: cm246

● Memory: 64GB DDR4 memory

● Display: Integrated graphics, supports up to 2560×1600

● Storage: supports 1 onboard 2.5” hard disk installation slot, 1 set of M.2 (2280) interface reserved.

● Front panel interface:

USB: 4 USB3.0 and 2 USB2.0 interfaces

Serial port: 1 RS232/RS422/RS485 (DB9)

Reset: 1 reset button

Network port: 2 Gigabit Ethernet interfaces (RJ45)

Display interface: 2 HDMI, 1 VGA

● Interface to back panel:

1 ×16 PCIE or 2 8 or 4 × 4 ports

4 groups of 100M clocks

● Operating temperature range: -40℃~+60℃

● Operating humidity: 10%~90%, non-condensing.

● Storage temperature: -40℃~+85℃.

● Shock: 15G peak-peak, 11ms duration (non-operating state).

● Vibration: 2Grm random vibration, 5-500Hz per axis (operating state).

● Operating system:

• Windows 7 Pro 32-bit and 64-bit
• Windows 10 Pro 64-bit
• Red Hat® Enterprise Linux® 64-bit
