VPX Series

GPU Card

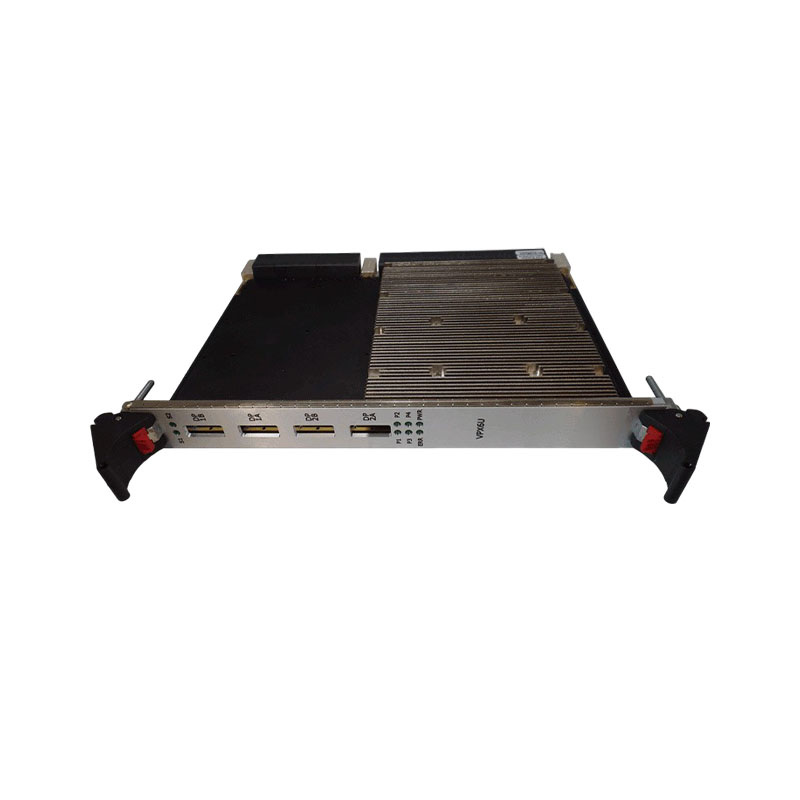

VPX-RTX-P5000
To meet the needs of embedded, ruggedized, and mobile systems, the VPX-RTX-P5000 leverages the Quadro Pascal architecture to deliver outstanding display and compute performance. Designed to operate in hardware form factors that are incompatible with traditional PCI Express graphics cards, the VPX-RTX-P5000 can operate reliably in a variety of thermal conditions and harsh environments, making it ideal for applications that require high-density GPUs with selectable GPU memory capacity, reasonable power requirements, and flexible display outputs.

Consult

Features Technical Indicators Overall Dimension

• NVIDIA® Quadro® RTX5000 Embedded Display
• Standard MXM 3.1 Type B+ form factor (82 x 110mm)
• 3072 CUDA cores, 48 RT cores, and 384 Tensor cores
• 9.4 TFLOPS peak FP32 performance
• 16GB GDDR6 memory, 256-bit
• 448GB/s maximum memory bandwidth
• Supports 4 DP 1.4b displays, 110W TGP
• 5-year supply guarantee

Display Core
GPU	Quadro® RTX5000
Memory	16GB GDDR6 memory, 256-bit, bandwidth: 448GB/s
GPGPU Computing Power
CUDA Core	3072 CUDA® cores, 9.4 TFLOPS peak FP32 performance
Tensor Cores	384 Tensor Cores
Mechanical And Environmental Parameters
Specification	1" 6U VPX
Size	233.5mm x 160mm
Operating Temperature	Conduction-cooled version: -40°C to +75°C (measured next to the wedge lock), Air-cooled version: 0°C to +55°C (ambient temperature)
Storage Temperature	-40°C to +85°C
Shock	Conduction-cooled version: 40G peak, 11ms, Air-cooled version: 20G peak, 11ms
Vibration	Conduction-cooled version: 15Hz - 2KHz, 12Grms, random, per axis, operating Air-cooled version: 10Hz - 2KHz, random, Sine: 2G, 5 to 500Hz
Power Consumption	120W
Software
Operating System	Windows 7/10 & Linux Drivers, 64-bit
Display API	DirectX® 12, OpenGL 4.6, Vulkan 1.0 API
Compute API	CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2
NVIDIA Technology	NVIDIA® Mosaic Technology/ NVIDIA® nView® Display Management Technology
