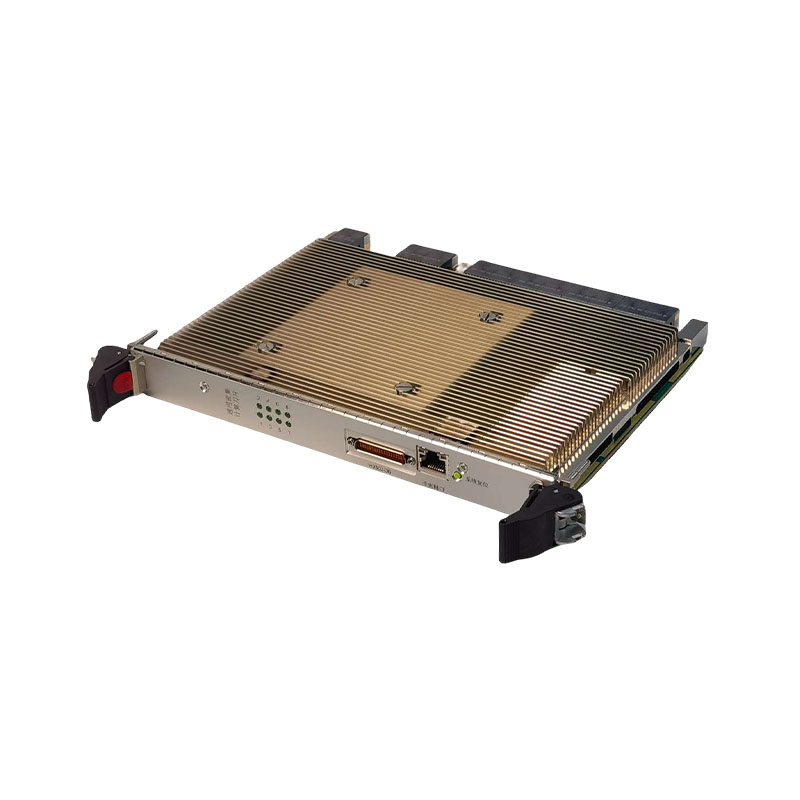

VPX-6VE5 uses Intel® Xeon® high-performance processor and supports VGA display interface. Provides 32GB DDR4 onboard memory. Supports multi-channel PCIe3.0 bus.
Structure: 6U VPX, 5HP, Compatible with OpenVPX (VITA 65) standard
Processor: Intel Xeon E5-2618L V4 2.2GHz, 10 cores 20 threads, 75W 14nm technology process
Management: ASPEED AST2400 Advanced PCIe Graphics & Remote Management Processor
Memory: Standard four-channel 32GB DDR4-2133 MHz, support ECC, support up to 64GB onboard memory
BIOS: AMI® UEFI BIOS, 8MB SPI flash memory
VPX bus:
P0: 12V POWER SUPLY, 2* IPMB, 1* SYS_RESET, GA [4:0] physical address port, 1* PCIe Ref Clock
P1: 2 SRIO x4 GEN2 buses (optional), support 2-way 40G KR4 signal (or 4-way SFP+) P2: 1* PCIe x16 GEN3
P2: 4 PCIe x4 (can be equipped with 2 x8, 1 x16) GEN3 bus.
P3: 2 PCIe x4 (1 x8 optional) GEN3 buses
2 1000 BASE-X (Serdes) interfaces (use either of them or the front BASE-T interface)
2 pairs of 100MHz HCSL PCIE differential clock signals
4 GPIO signals
P4: 2 1000 BASE-X (Serdes) interfaces, 4 pairs of 100MHz HCSL PCIE differential clock signals
P5: 1 VGA signal. 4 USB2.0 signals.
P6: 4 SATA3.0 interface signals. 4 fan control signals.
2 serial port signals, 1 supports RS232, 1 supports RS422 mode. Rack ID signal.
Specification: Support OpenVPN MOD6-PAY-4F1Q2U2T-12.2.1-2 specification
IPMI: supports IPMI interface, iKVM,
Display: BMC AST2400 integrated graphics card, maximum support 1920 x 1200 resolution
Front panel: supports 1 VGA analog display interface, which can be switched to rear I/O through the DIP switch
HJ30J interface (1 VGA, 2 USB, 1 BMC debug serial port, 1 CPU communication serial port, 1 JTAG signal)
Storage: 1 mSATA on the carrier board
RTC: button lithium battery, used to save RTC CMOS RAM, BIOS configuration
Operating system: Windows 7/ Windows 10/ Windows Server 2008/ Windows Server 2012/Linux operating system, etc.
Mechanical size Dimensions: 233.35mm*160mm (length*width)
Working temperature: -20℃～+60℃, optional -40℃～+60℃, (the system needs to provide sufficient heat dissipation capacity)
Relative humidity: 95%, no condensation
Shock: 15g peak-to-peak value, 11ms duration, non-operating
Vibration: 2Grms random vibration, frequency of each axis 5Hz～500Hz, working state
Weight: not more than 1500g (with heat sink).
